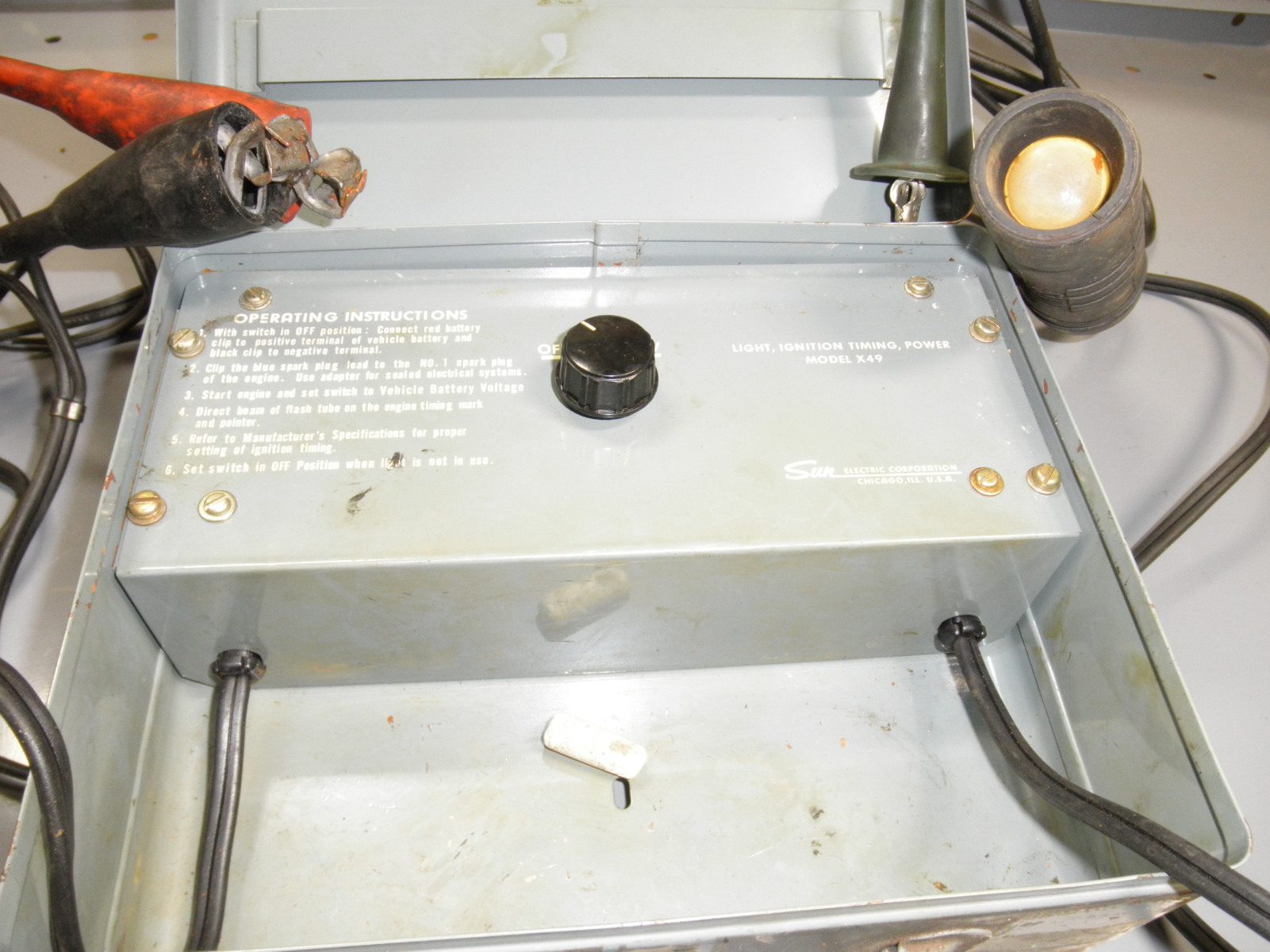

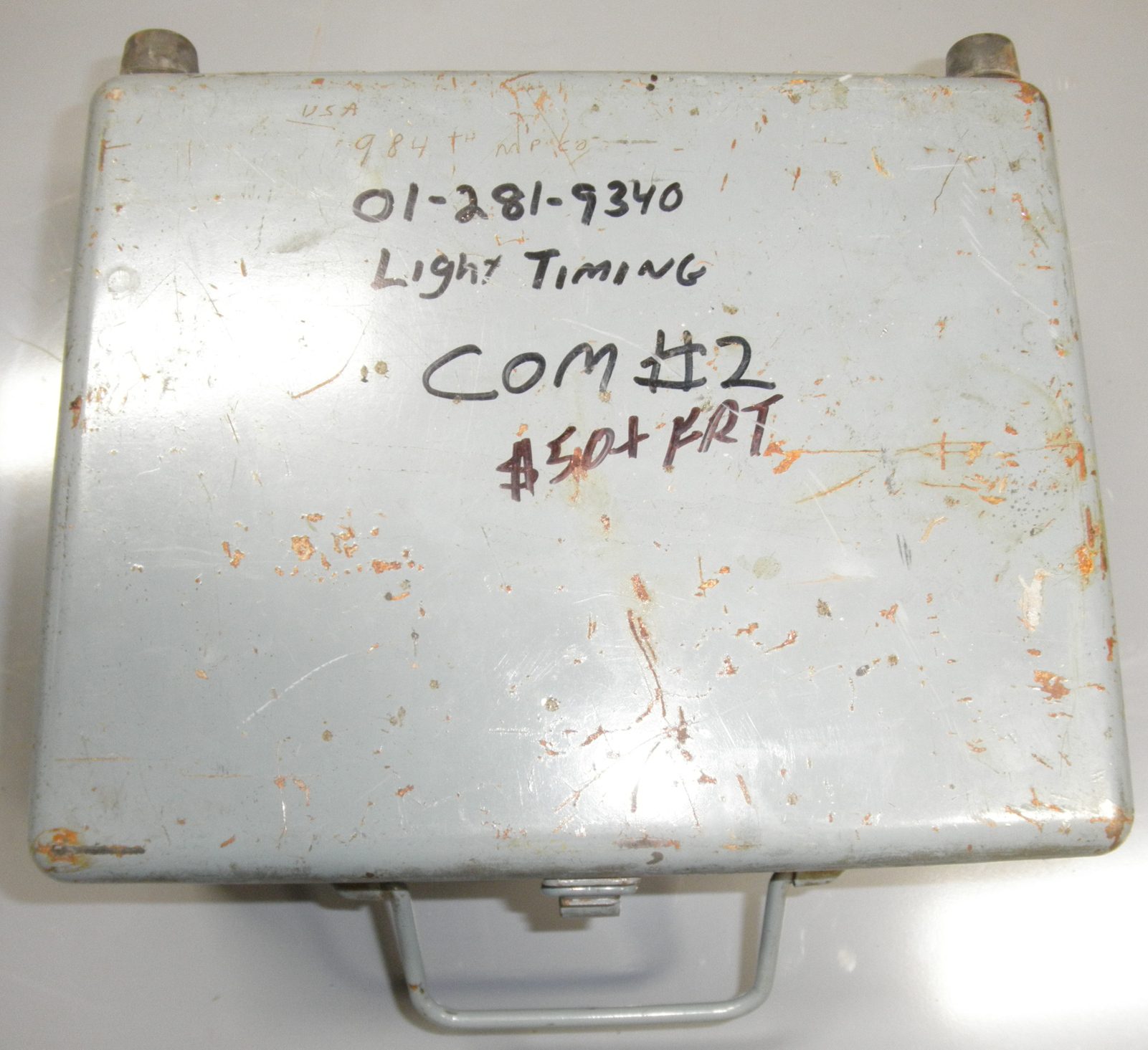

used Sun X49 Timing Light. 12v / 24v. Ex-Military, NSN 4910-01-281-9340. This kit was built to US Army specification MIL-L-13009. Get yours from DP Equipment LLC,
SPECS:
ABFE | Hazardous Locations/Environmental Protection | Any acceptable |
ABHP | Overall Length | 12.000 inches maximum |
AEUJ | Lamp Base Type Accommodated | Double contact bayonet candelabra |
AEXD | Lens Color | Colorless |
AEYB | Wiring Provision Method | Individual wire |
AEYM | Light Beam Motion | Flashing |
AHHZ | Wiring Provision Length | 120.0 inches nominal second provision |
AHHZ | Wiring Provision Length | 120.0 inches nominal third provision |
AHHZ | Wiring Provision Length | 60.0 inches nominal first provision |
ASXH | Voltage Rating in Volts | 12.0 dc nominal |
CRHX | Lamp Type Accommodated and Quantity | 6 flashtube |
MATT | Material | Any acceptable base |
SHPE | Shape | Irregular |
TEST | Test Data Document | 81349-MIL-L-13009 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as “typical”, “average”, “nominal”, etc.). |
TTQY | Terminal Type and Quantity | 2 clip |
ZZZK | Specification/Standard Data | 81349-MIL-L-13009F government specification |
